Removing Components

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Additional Heater 912-B Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Outside temperature sensor:

Remove:

outside temperature sensor connector.
the outside temperature sensor (6) from the mounting point.

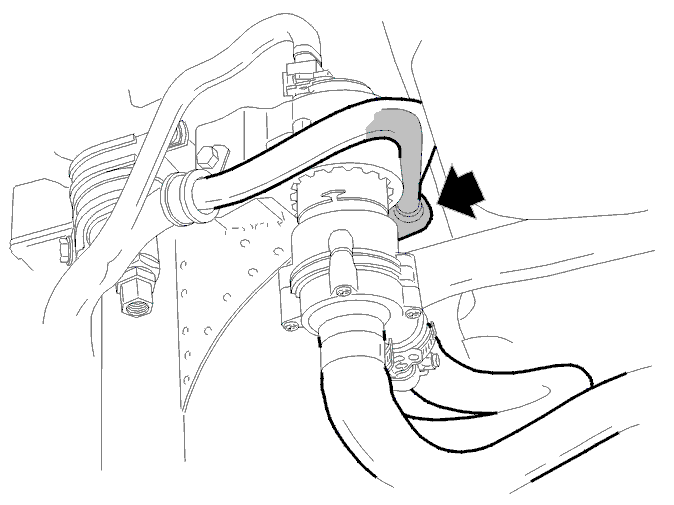

Fig 2: Glow Plug

Courtesy of VOLVO CARS OF NORTH AMERICA.

Glow plug:

Remove:

rubber cover.
the glow plug electrical terminal.
the glow plug.
