Pipes And Hoses, Overview

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

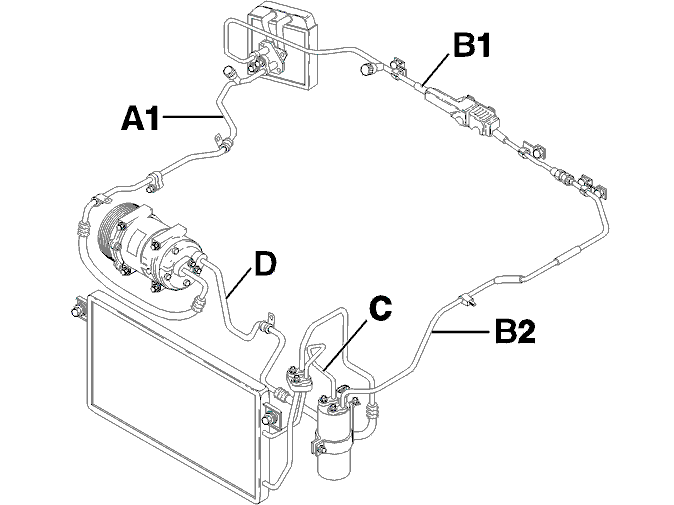

Fig 1: Pipes And Hoses

Courtesy of VOLVO CARS OF NORTH AMERICA.

A1: The hose/pipe between the compressor and the evaporator

B1: The pipe between the evaporator and the swivel connection

B2: The pipe between the swivel and the receiver drier

C: The pipe between the receiver drier and the condenser

D: The hose between the condenser and the compressor
