Removing Control Panel

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

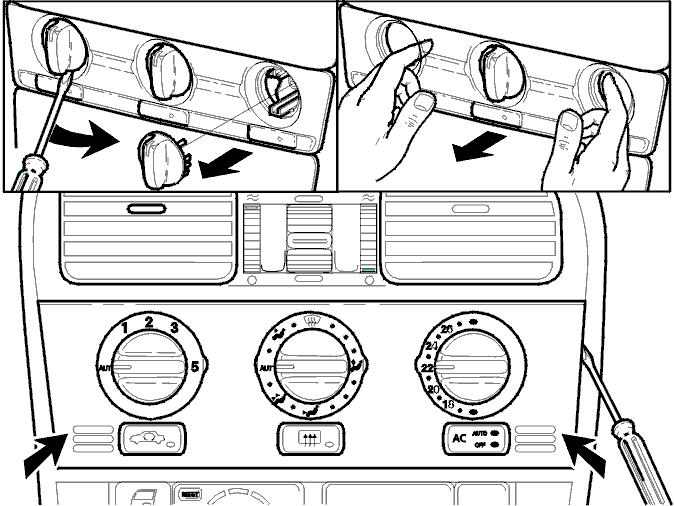

Fig 1: Replacing Control Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the knobs out from the control panel. Use a small screwdriver.

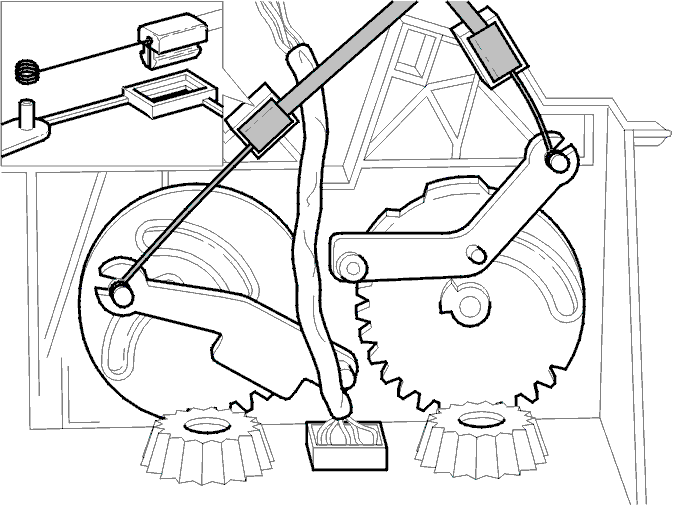

Fig 2: Adjusting Mechanical Control Cables

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the front panel: Insert fingers in the opening. Pull carefully.

Disconnect the cables.
Press out the locking. Disconnect the inner cables.
