Removing the Control Cable, Driver's Side Control Panel - Central Unit

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

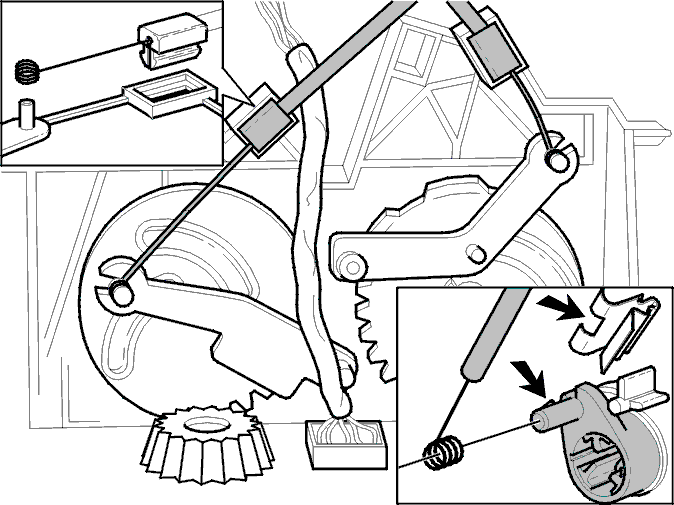

Fig 1: Replacing Mechanical Control Cables For Fan Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the control panel according to Control Panel (MCC) .
Remove the driver's side soundproofing panel on the dashboard.
Remove the carpet support from the center console, driver's side.
Press the clamps inwards and outwards.
Disconnect the inner cable from the discs.
