Removing the Power Unit Blower Fan

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

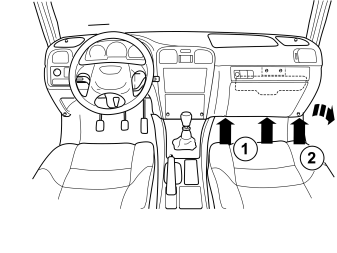

Fig 1: Glove Compartment And Dashboard Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 2x screws (1) and the glove compartment.

Slacken off the screw (2) at the lower edge of the dashboard.

Carefully pry out the dashboard at the lower edge.

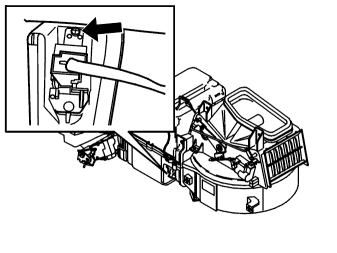

Fig 2: Power Unit Blower Fan

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the connector
the 2x screws and remove the power unit.

HINT: To facilitate access to the screws, use a bit in an adjustable wrench or a small ratchet.
