Remove/install power unit (cars without AC)

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

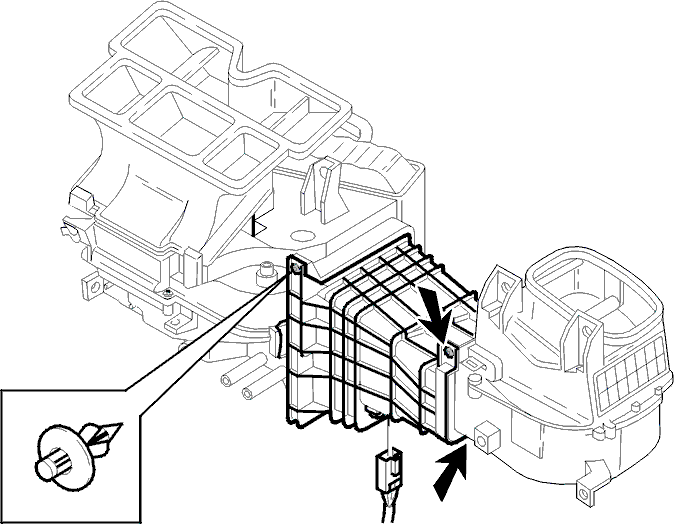

Fig 1: Removing/Installing Power Unit (Cars Without AC)
GLL117068Courtesy of VOLVO CARS OF NORTH AMERICA.

For cars with AC, see Remove the heater unit .

Disconnect the connector from the resistors.

Press in the pins on the clips and remove the clips.

Carefully pull the power unit backwards

Install in the reverse order.

Check the seal.
