Remove the fan housing
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Remove the power unit, see Power Unit Blower Fan .
Cars with AC:
Disconnect the AC-pipe in the engine compartment from the support.
Loosen the two screws at the top and the nut at the bottom, and pull the power unit backwards as far as possible.
Remove all electric connections from the fan housing.
Remove the support (if there is any installed in the car) from the instrument panel (2 nuts).
Remove the attaching nuts from the fan housing (3x).
Carefully pull back the housing, and remove it with a twisting movement.

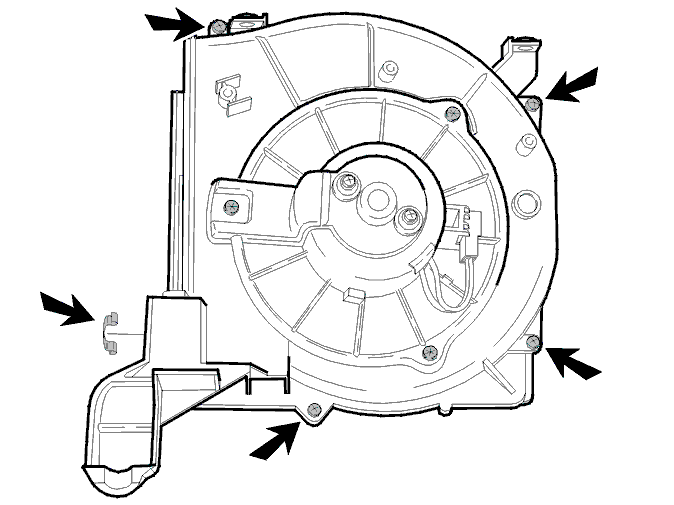

Remove the attachments (4x) and the clip.
Transfer the damper motor, see Replace the Recirculation Damper Motor .
Transfer all dampers, etc.
NOTE:
The dampers are screwed on the shaft. Lubricate the guide.
Install in the reverse order.
Tightening torque for screws: 8 Nm.
Check the seals.
