Remove the fan (fan housing removed)

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

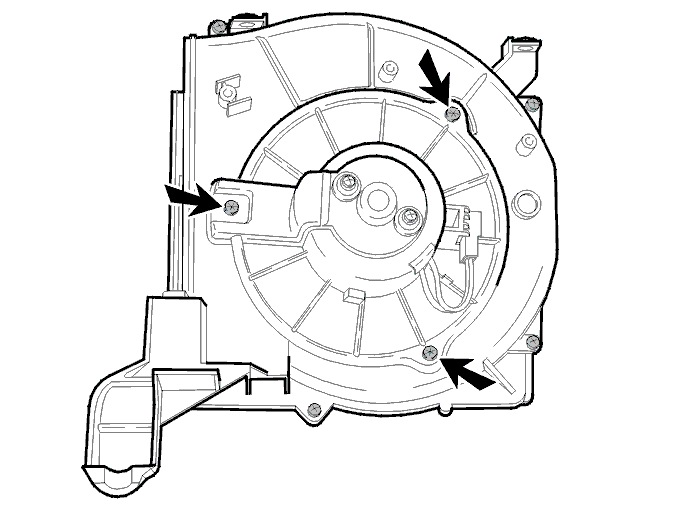

Fig 1: Removing Fan (Fan Housing Removed)
GLL117066Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove 3 screws.

Remove the fan.

Install in the reverse order.

Check the seals.
