Removing Expansion Valve
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the evaporator according to Evaporator

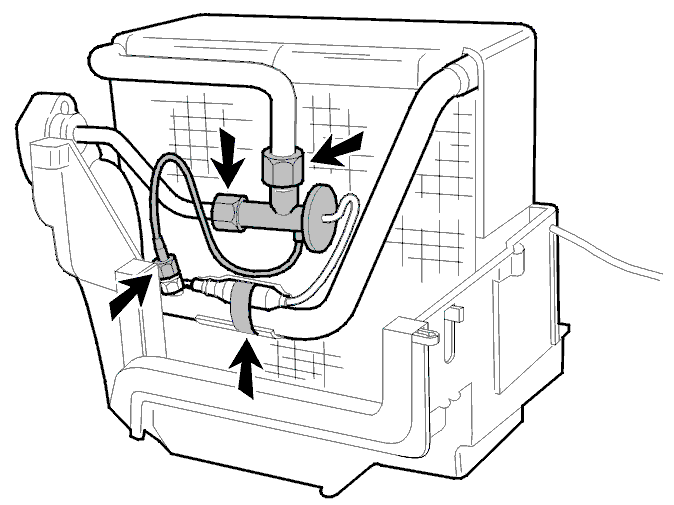

- Disconnect the connections from the expansion valve. Use two wrenches
- Remove the insulation
- Remove the temperature sensor from the pipe (clip)
- Remove the expansion valve.
