Fan Housing, Removing: Installation

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

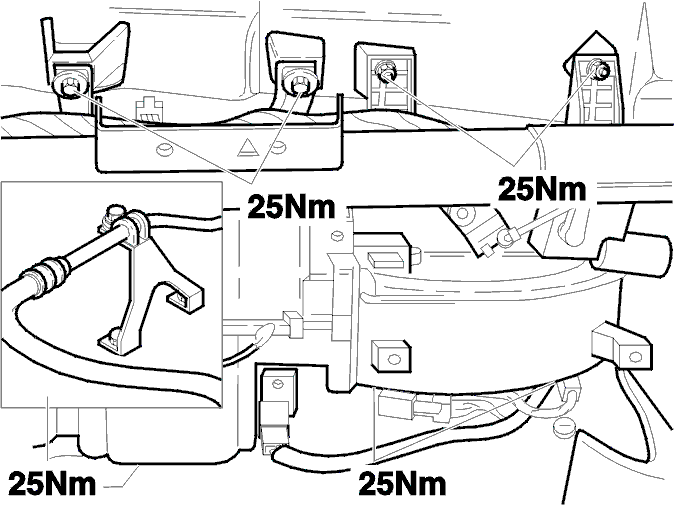

Fig 1: Identifying Fan Housing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Assemble in reverse order.

HINT: Check the seal between the fan housing and the intermediate section.

HINT: Tightening torque: Mounting nuts on the housing to the heater unit motor: 25 Nm.
