Replacing the Expansion Valve: Installation

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

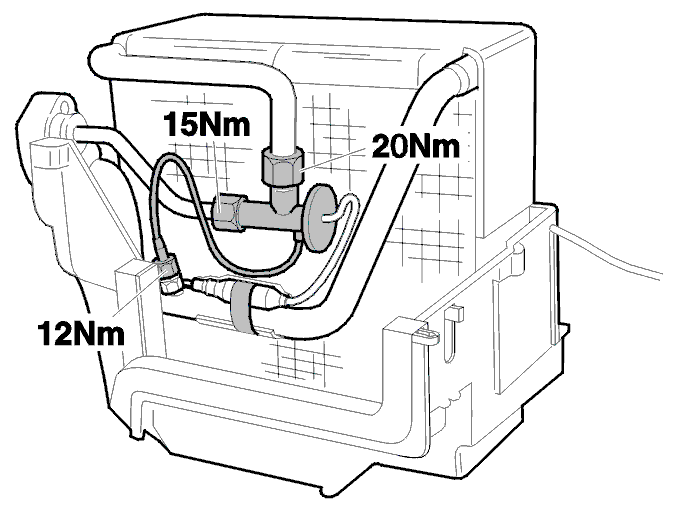

Fig 1: Expansion Valve With Torque Specifications

Courtesy of VOLVO CARS OF NORTH AMERICA.

Assemble the O-rings. Lubricate them with air conditioning (A/C) compressor oil.
Secure the expansion valve by hand. Position it so that it is free of the evaporator. Secure it. Use two wrenches.
Press the temperature sensor onto the pipe
Reinstall the insulation
Install the evaporator according to Evaporator .

Tightening torque: Heavy duty pipe: 20 Nm, Thin pipe: 15 Nm. Sensor: 12 Nm.
