Removing Condenser
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

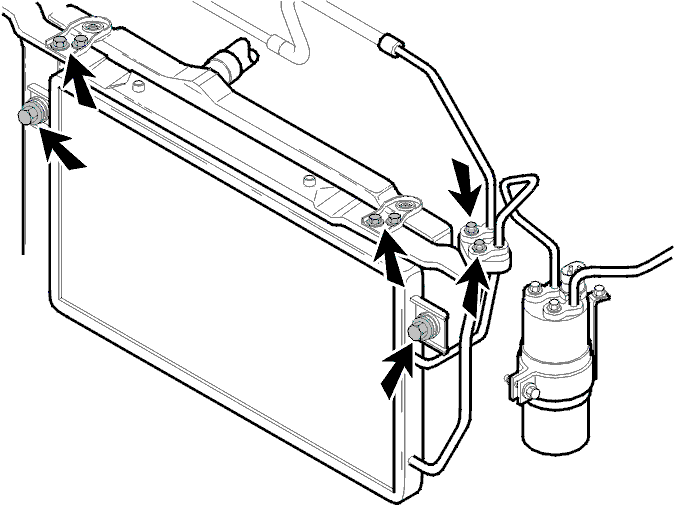

- Remove the upper support for the cooler
- Disconnect the pipe for the condenser from the cooler and plug the openings
- Remove two mounting screws from the condenser
- Lift up the radiator slightly and push it towards the cylinder block (press at the bottom of the radiator)
- Lift the condenser. Remove it with a twisting movement.
