Removing the Ventilation Vent On the Driver's Side

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

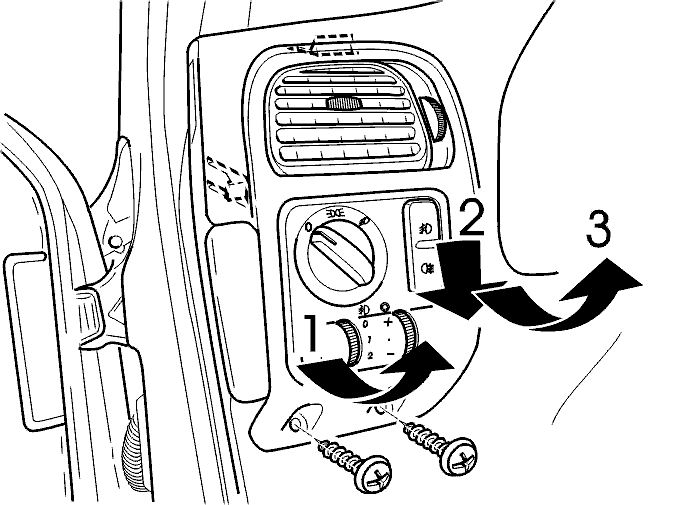

Fig 1: Removing The Ventilation Vent On The Driver's Side
GLL115326Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the two screws on the underneath of the light switch.

Pull the panel downwards.

Disconnect the connectors.
