Removing the Center Ventilation Vents
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
- Lower the comfort module according to Comfort module

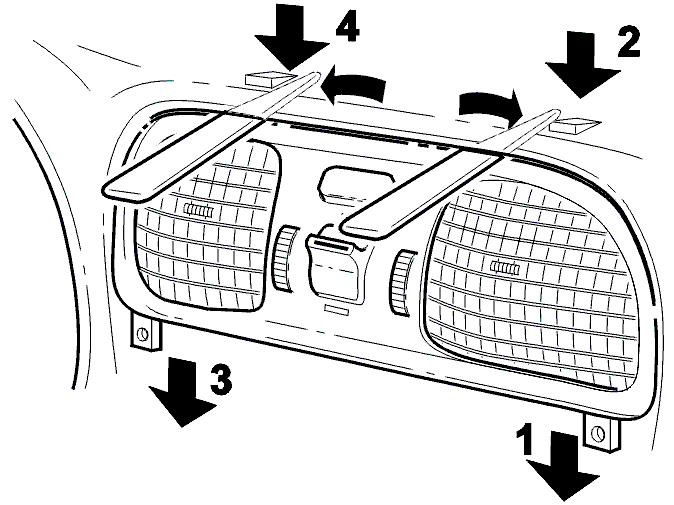

- Pull the grille for the ventilation vents down slightly on the right-hand side. Press the catches down using a weatherstrip tool 9814071
- Pull the panel forward
- Pull the grille for the ventilation vents down slightly on the left-hand side. Press the catches down using a weatherstrip tool 9814071
- Disconnect the connector for the hazard warning signal flasher.
