Tightening Torques For Pipes And Hoses

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

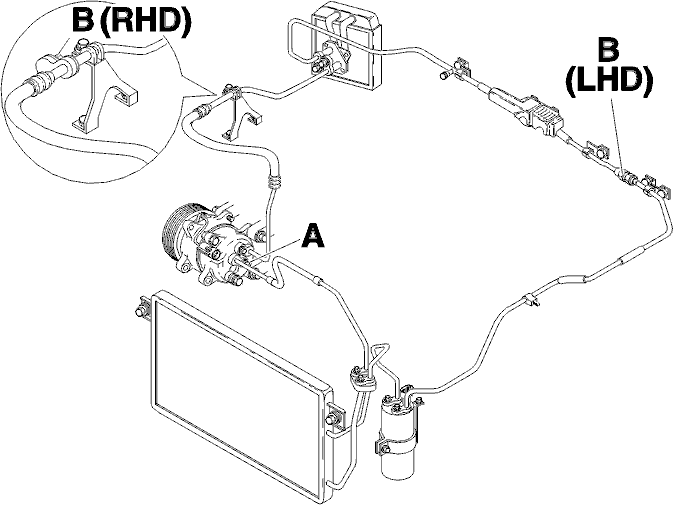

Fig 1: Pipes And Hoses -- LHD & RHD

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pipes and hoses connected on back (A) of compressor.

Tightening torques for pipes and hoses:

Zexel 22 Nm .
Sanden 45 Nm .
MSC90 25 Nm .
Joints, pipe connections (B) 13 Nm .
Hoses, pipe couplings, M6, 10 Nm .
Hoses, pipe couplings, M8, 25 Nm .

NOTE: Hold pipes in place with your hand when removing and tightening to avoid damage to couplings and pipes.
