Pipes And Hoses, Overview

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

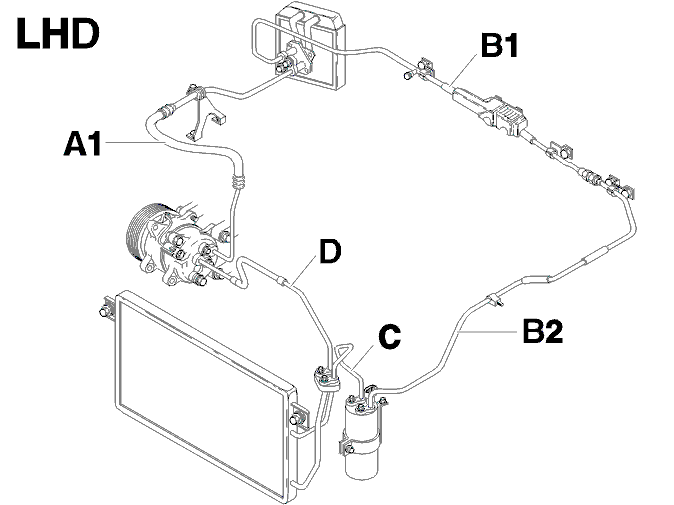

Fig 1: Pipes And Hoses -- LHD

Courtesy of VOLVO CARS OF NORTH AMERICA.

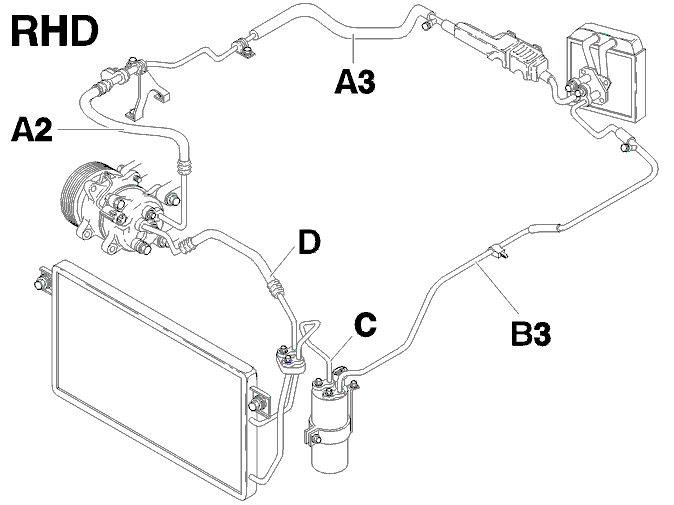

Fig 2: Pipes And Hoses -- RHD

Courtesy of VOLVO CARS OF NORTH AMERICA.

A1: Left-hand drive: Hose/pipe between compressor and evaporator

A2: Right-hand drive and diesel: Hose between compressor and connector

A3: Right-hand drive and diesel: Pipe between connector and evaporator

B1: Left-hand drive: Pipe between evaporator and swivel connection

B2: Left-hand drive: Pipe between swivel and dryer

B3: Right-hand drive: Pipe between evaporator and dryer

C: Pipe between dryer and condenser

D: Hose between condenser and compressor
