Cooling System, Draining/Refilling

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Special tools:

9985496

Conditions

Remove the front splash protector.

Draining of coolant

Fig 1: Drain Valve And Coolant Reservoir Cap

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Connect a hose to the drain valve to collect the coolant.

Remove the cover from the coolant reservoir.
Open the drain valve on the right side of radiator and drain coolant.
Close drain valve when all the coolant has drained out.

Draining coolant from engine

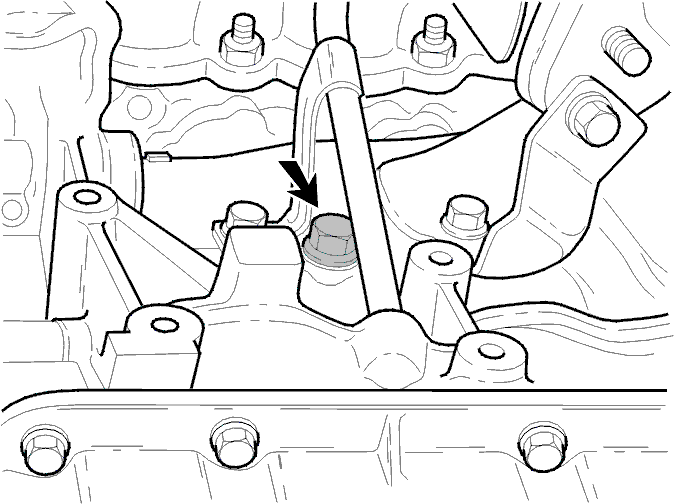

Fig 2: Cylinder Block Drain Plug

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION: When replacing the cooling water it is also important that the engine be drained.

Remove cylinder block drain plug.
Rinse the cylinder block with water.
Apply sealant (art. no. 116 1056) to the drain plug and tighten.
Torque setting: 28.8 ft lb

Refilling and bleeding of cooling system

Fig 3: Mixing Coolant And Water

Courtesy of VOLVO CARS OF NORTH AMERICA.

Top off cooling system via coolant reservoir.
Remove bleeder screw on thermostat housing and re-install when coolant trickles out. Install a new gasket. Tighten the bleeder screw.
Torque setting: 10.3 ft lb.

Total coolant volume is approximately 1.6 gallons .
Heat and re-fill coolant.
Check for leaks.
