Remove the clutch disc

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

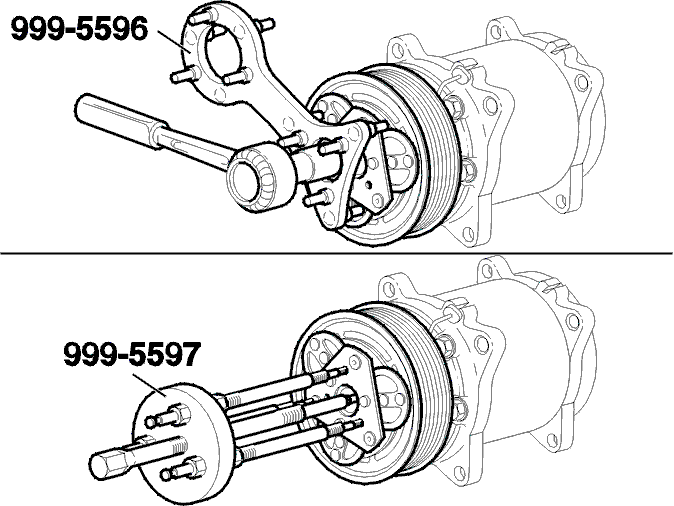

Fig 1: Remove Clutch Disc
GLL117104Courtesy of VOLVO CARS OF NORTH AMERICA.

Place counterhold 9995596 over the clutch disc and remove the nut (diesel) or the bolt (gasoline).

Install the belt pulley 9995597 and turn it into the clutch disc.

Pull off the clutch disc.

NOTE: Do not lose the adjusting rings.
