Remove the bearing from the belt pulley (only diesel)

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

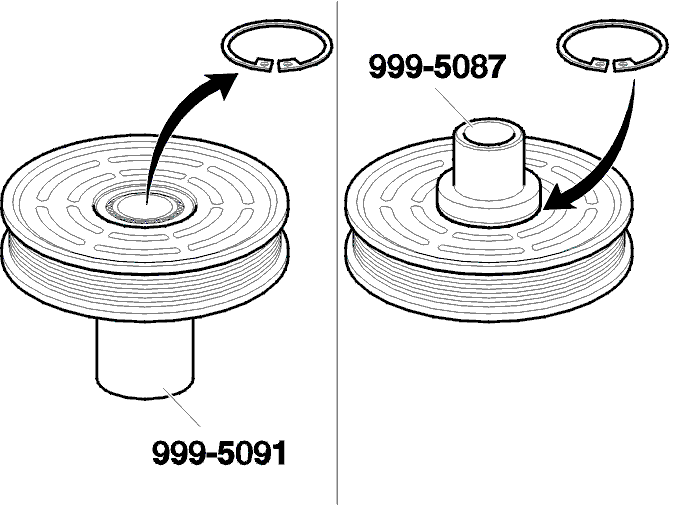

Fig 1: Removing Bearing From Belt Pulley
GLL117107Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the snap ring.

Press out the bearing with 9995091 .

Press in the new bearing with 9995087 .

Install the lock ring.
