Remove the Carbon Intermediate Ring

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

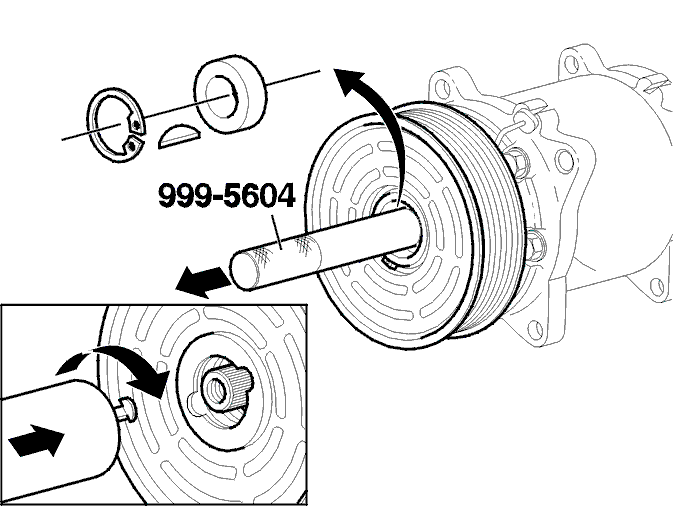

Fig 1: Removing Carbon Intermediate Ring

Courtesy of VOLVO CARS OF NORTH AMERICA.

Diesel: remove the key and felt ring.

Remove the snap ring.

Remove the intermediate ring from the shaft.

Install the special tool 9995604 in the slot and turn 90 degrees.

Pull out the intermediate ring casing to the right.

NOTE: clean all parts with compressed air and a lint-free rag.

Check to see if the parts are worn or dirty (especially important if remains of the intermediate ring are present).
