Install the Condenser

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

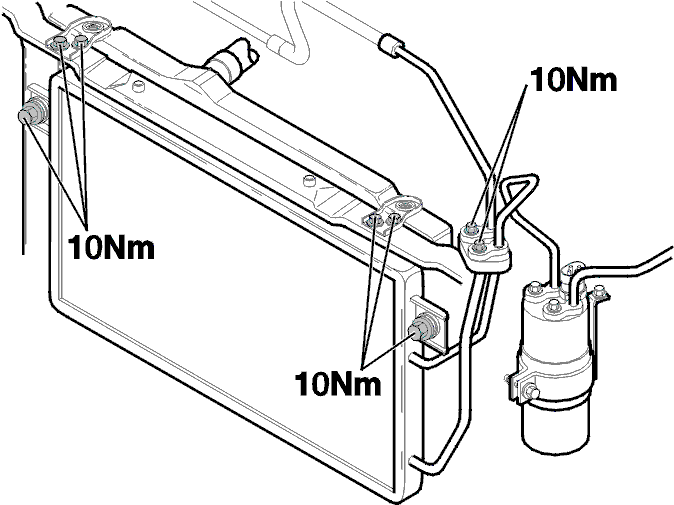

Fig 1: Radiator Mounting Bolts With Torque Specifications

Courtesy of VOLVO CARS OF NORTH AMERICA.

Transfer parts to the new condenser (rubber, foam, etc.).

Install the condenser and secure to 10 Nm.

Install the radiator and secure it to the supports, tightening torque 10 Nm.

Remove the seals.

Lube the new O-rings with compressor oil.

Install the pipes and tighten to 25 Nm.

Fill the system and check for leaks, see Filling With Refrigerant
