Remove/Install the Motor Unit

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

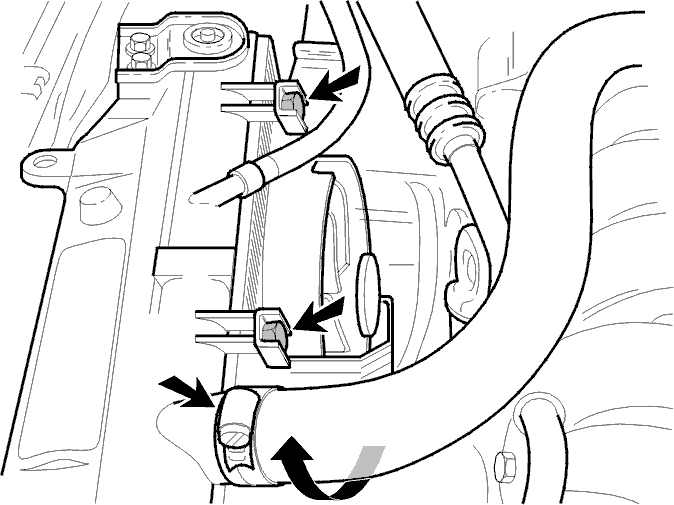

Fig 1: Radiator Connector And Upper Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the nut from the fan and pull the fan off the shaft.

Disconnect cables and connector.

Remove the three nuts and the motor.

Clean the shaft.

To install, reverse the removal procedure

Tighten the nuts to 6-8 Nm.

Tighten the fan nut to 6-8 Nm.
