Remove/Install the Condenser Unit
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

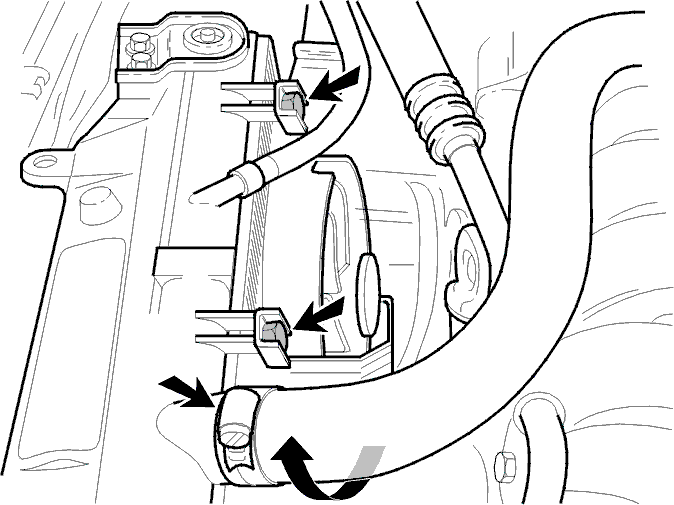

Disconnect the connector.
Remove the two upper bolts.
Loosen the lower bolt a few turns.
Turn the clamp for the coolant hose, if needed.
Turn out the unit from its place under the coolant hose and lift it out.
To install, reverse the removal procedure
NOTE:
Check that the slotted hole is exactly under the lower bolt.
Tighten the bolts to 8 Nm
