Remove/Install the Motor Unit
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

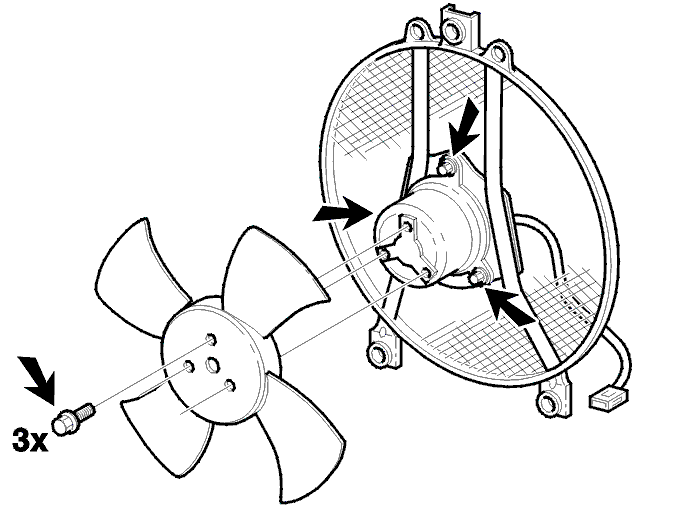

Remove the three bolts from the fan and remove the fan.
Disconnect cables and connector.
Remove the three bolts and the motor.
Transfer rubber and spacer bushings.
Clean the shaft.
To install, reverse the removal procedure
Tighten the bolts to 15 Nm
Tighten the screws to 6 Nm
