Changing the pulse wheel
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

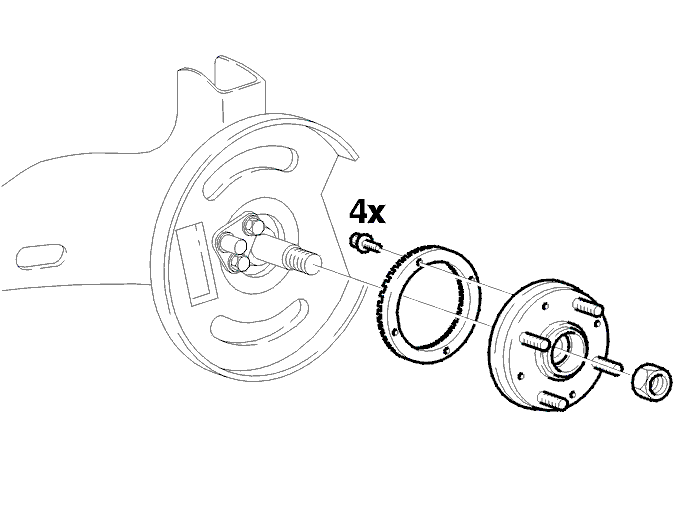

Remove the four bolts and the pulse wheel. Clean the hub and fit a new pulse wheel. Tightening torque -97 25 Nm , 98- 8 Nm .
Clean the stub axle and hub.
Fit the hub and screw on the new nut. Tighten -97 to: 175 Nm , 98- to 120 Nm and angle tighten 30° .
Clean and refit the brake disc. Tightening torque 5 Nm .
Fit
- the brake caliper, see Fitting the rear brake disc .
- the brake hose, position the holder.
Fit the wheel, see Wheels, installing .
