Removing on the right-hand side

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

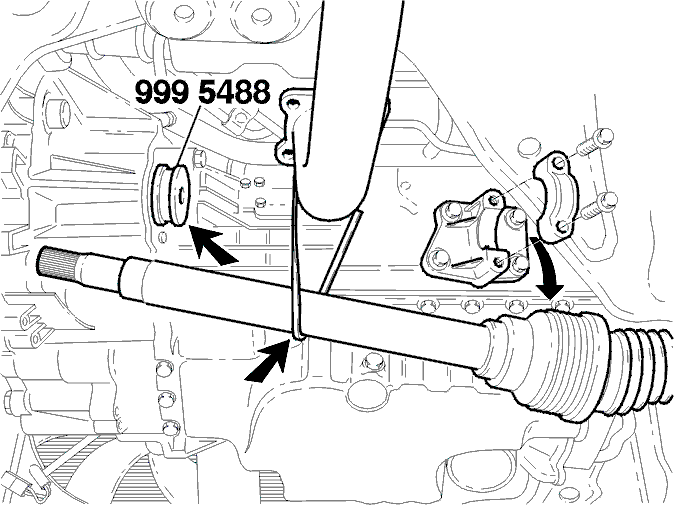

Fig 1: Removing Stub Axle From Spring Strut (Removing On Right-Hand Side)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the drive shaft out of the transmission.

Remove the stub axle from the spring strut. Turn the stub axle (steering left) while pulling the drive shaft out of the transmission.

CAUTION: Take care not to damage the sealing ring in the transmission.

Let the drive shaft rest against the front axle member.

Install plug 9995488 .

Tie up the stub axle so as not to stretch the brake hose.

Remove:

The front and rear transmission brackets
The screw on the exhaust pipe mounting.
