Disconnecting the oil pipes

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

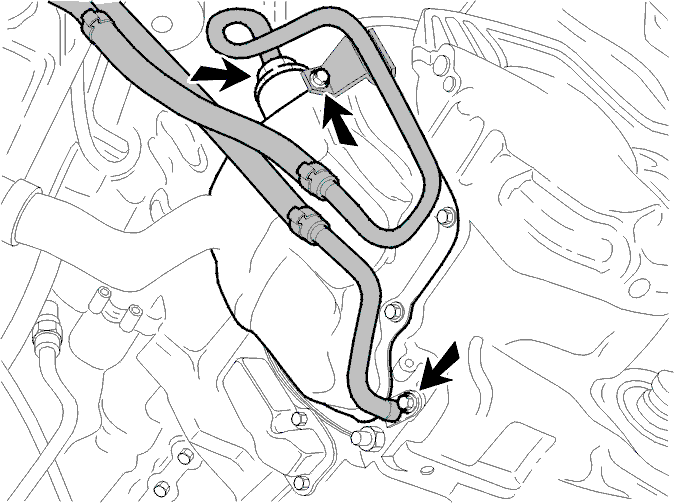

Fig 1: Disconnecting/Installing Transmission Oil Pipes
GLL115864Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the oil pipe connections from the transmission. Push the connections to one side.

Ensure that no dirt gets into the transmission and hoses.

Seal all the openings using plastic plugs.

NOTE: Do not remove the hoses from the pipes.
