Installing the front and rear brackets

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

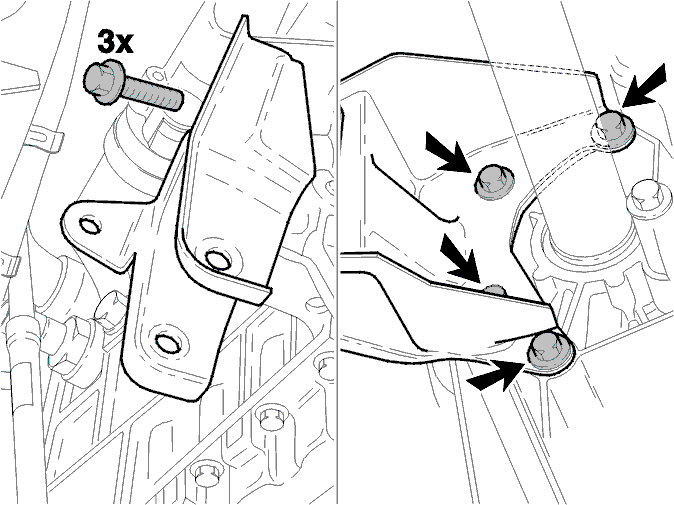

Fig 1: Removing/Installing Heat Deflector Plate And Member

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check the position of the drive shaft. Check carefully that it is below the rear bracket when installing.

Install:

The front and rear mounting brackets to transmission housing.
Tightening torques:
- rear 40 Nm
- front 50 Nm .
Screw on the exhaust pipe mounting.
