Removing the shift lock solenoid with micro-switch

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

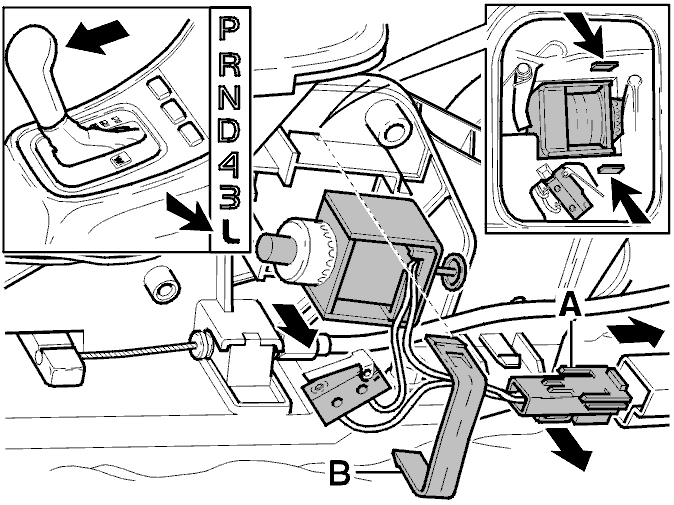

Fig 1: Removing Shift Lock Solenoid With Micro-Switch

Courtesy of VOLVO CARS OF NORTH AMERICA.

CAUTION: Move the gear selector to position L to prevent damage when removing/installing the micro-switch. If the shift lock solenoid does not operate: Turn the ignition key to position 1. Depress the SHIFTLOCK OVERRIDE button to move the gear selector lever.

Remove the connector from the gear shift. Disconnect the connector (A)
Remove the clamp (B). Remove the solenoid.
CAUTION: Undo the clamp (B) on the reverse of the bracket to prevent damage to the clamp.
Remove the micro-switch: Press the lugs together.
