Removing the front center console, continued

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

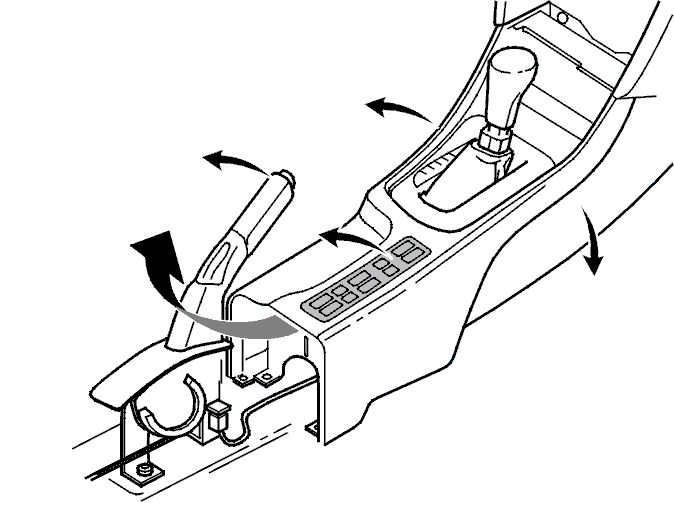

Fig 1: Identifying Left/Right Side Panels, Center Console And Panel With Switches
GLL117321Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the left and right side panels.

Remove the panel with the switches. Disconnect all the connectors.

Fully apply the parking brake.

Remove the center console.
