Installing the front center console
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

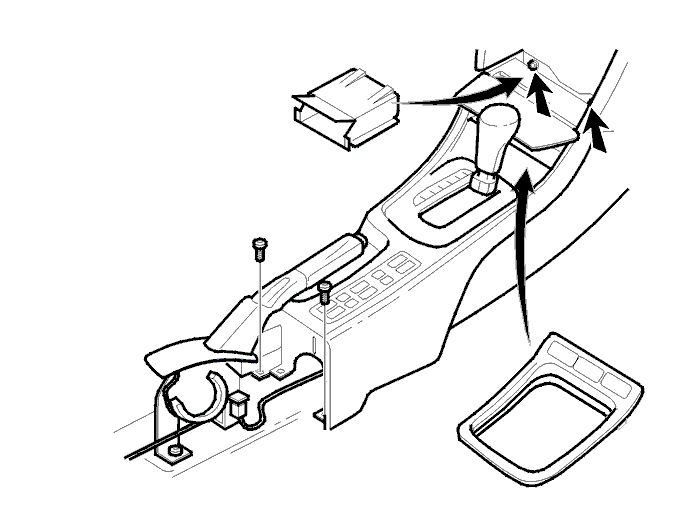

Install:
- The gear selector panel in the center console
- The panel with the switches by the gear selector and the connectors
- The holder with ashtray. Connect the connectors.
Install the screws in the front and rear edges
- If the car has an anti-theft device: The bracket for the anti-theft alarm.
Tighten the rear screw to: 40 Nm .
- The center console locker under the radio or the large-fronted radio
- The side panels.
