Installing connectors/cable harnesses
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

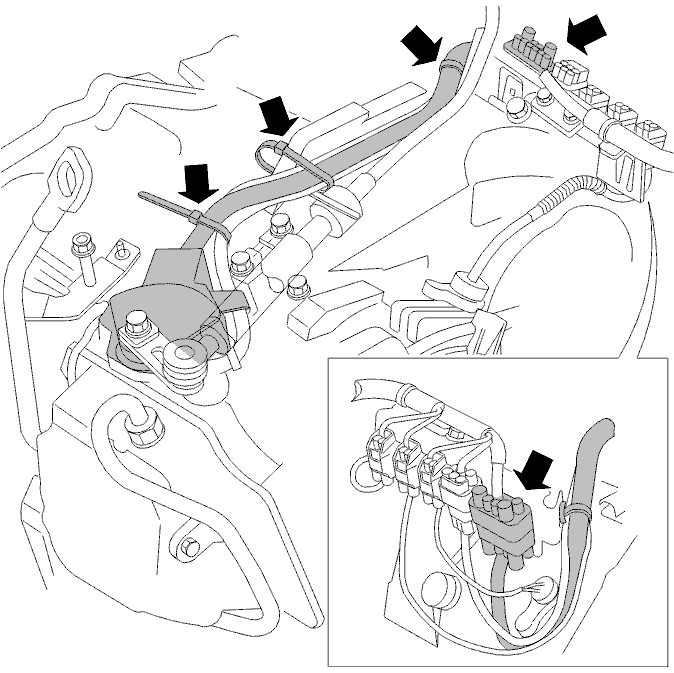

Connect the gear-shift position sensor connector. Install the connector on the bracket.
Clamp the cable harness for the sensor to the cable harnesses for the solenoids and oil temperature sensor.
Clamp the cable harnesses under the transmission cable harness and the gear-shift position sensor.
