Installing lifting beams

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

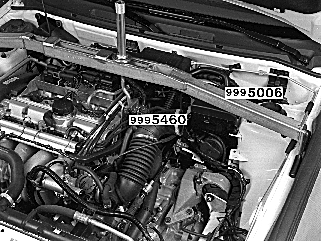

Fig 1: Identifying Lifting Beam And Lifting Hook

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

Lifting beam 9995006
Lifting hook 9995460

Position the lifting beam directly above the lifting eyelet on the engine.

Raise the lifting hook to relive the load on the engine pads.

Remove the three screws from the upper mounting for the transmission.
