Replacing the sensor
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLVO CARS OF NORTH AMERICA.

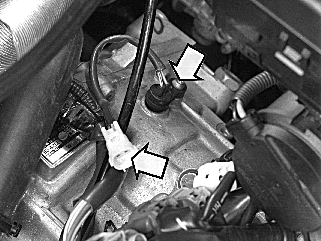

Clean thoroughly around the sensor.
Remove the sensor and separate the connector.
Install:
- The new sensor with a new O-ring. Lubricate the O-ring with automatic transmission fluid.
- Tighten the screw.
Torque: 5.5 Nm
.
