Removing drive shaft from transmission

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

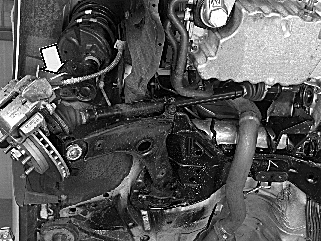

Fig 1: Identifying Stub Axle Secured To Spring Strut

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold out stub axle and remove drive shaft from transmission.

Let drive shaft rest against bracket.

Secure stub axle to the spring strut with a tie straps so as not to stretch the brake hose and ABS line.
