Installing lifting beam

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

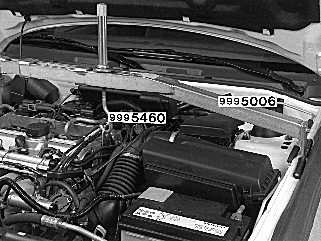

Fig 1: Identifying Lifting Beam And Lifting Hook
GLL126198Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove engine cover.

Install lifting beam. 9995006 and lifting hook 9995460 .

Raise the lifting hook a little.
