Removing drive shaft from transmission

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

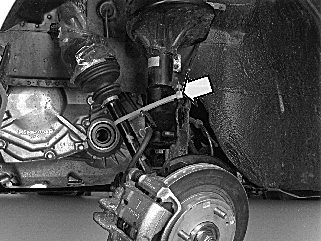

Fig 1: Identifying Drive Shaft Secured With Tie Strap
GLL126191Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold out stub axle and remove drive shaft from transmission.

Secure the drive shaft with a tie strap and protect end of the drive shaft from dirt.

Secure the stub axle to the spring strut with one of the screws.
