Installing sealing ring
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Install a new seal ring.
Lightly grease lip of sealing ring.

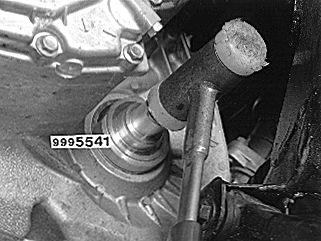

Use drift 9995541 . Place the end of the drift marked AW50 against the seal ring.
Carefully tap in the seal ring until the drift is in contact with the transmission housing.
CAUTION:
Use a plastic mallet so as not to damage the tool.
