Removing control system: Removing
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Remove cable harness from holders on the control system.

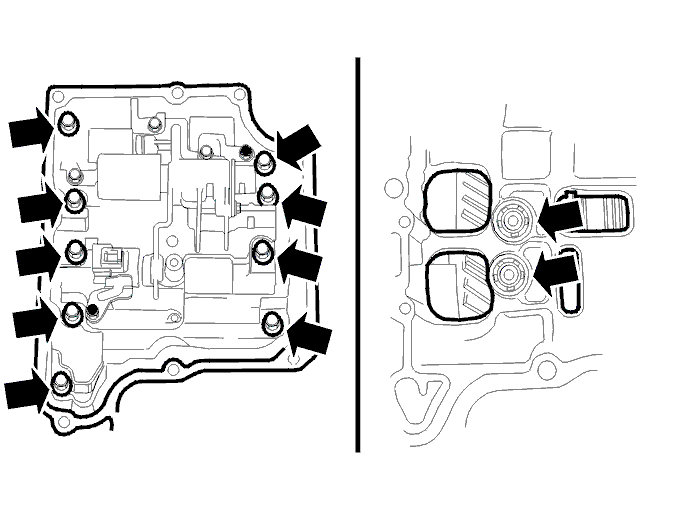

Remove control system from transmission.
Seven screws and two in cover.
Remove the two seals between the transmission and control system as shown.
NOTE:
Ensure that no dirt gets into the transmission.
