Reinstalling control system

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

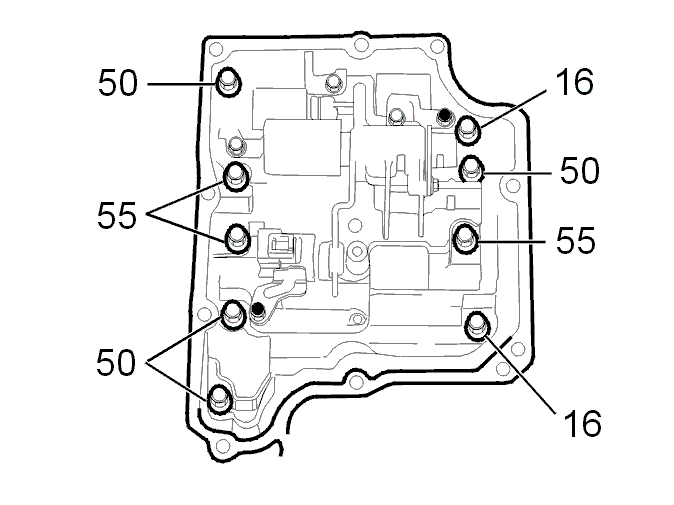

Fig 1: Identifying Control System Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install control system in transmission.

Insert arm on gear selector slide in hole in gear selector cam.

Install screws. Note that screws are of different lengths (measured in mm.).

NOTE: Tighten screws alternately.

Tightening torque: 8 Nm .

Install cover with new gasket.

Tightening torque: 10 Nm .
