Installing cover
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Install:
- Control system cover on transmission.
Tighten screws (Torx TX40) alternately.
Tightening torque: 12 Nm .

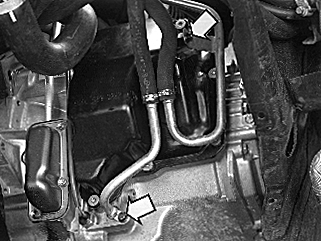

- Oil pipe to transmission with a new O-ring. Apply a little gasolineeum jelly to the O-ring.
Tightening torque: 10 Nm .
- Return oil pipe to the control system cover. Tighten cap nut from above.
- Screw to pipe holder on cover.
Tightening torque: 10 Nm .
- Splash guards under engine
- Splash guard under left wheel arch.
Lower the car.
