Installing/Adjusting the gear position sensor

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

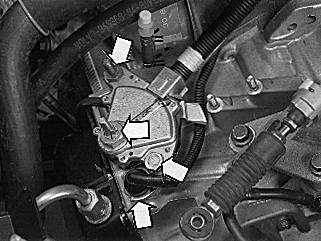

Fig 1: Identifying Holder/Spacer And Holder/Gear-Shift Position Sensor Screws

GLL126185

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

The holder/spacer on the cable harness grommet.
The screws for the holder/gear-shift position sensor. Do not tighten the screws.
The rubber washer, the lock washer and the nut for the gear shift linkage rod. Lock the nut with the washer.

Adjust the gear-shift position sensor according to Checking and adjusting gear-shift position sensor .
