Connecting the cable harness to the control system
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

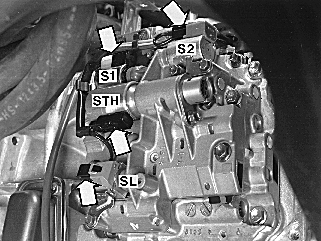

Install the new cable harness with grommet and an O-ring. Connect the connectors to the solenoids.
Connector/cable colors:
Solenoid S1: White/white
Solenoid S2: black/black
Solenoid SL: black/yellow
Solenoid STH: black/brown, blue
Install the cable harness in the holders. Check that it is correctly positioned.
