Replacing the kickdown switch (KD): Removal

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

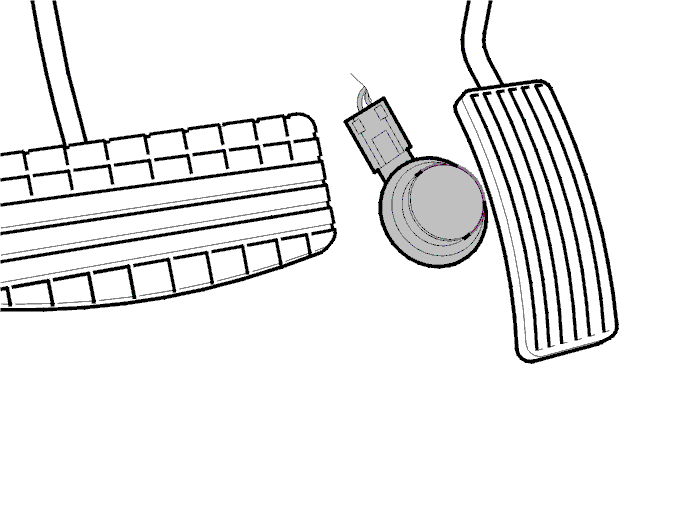

Fig 1: Identifying Kickdown Switch
GLL125391Courtesy of VOLVO CARS OF NORTH AMERICA.

Separate the connector.

Fold up the rubber cap on the kickdown switch (KD).

Press in the lugs on the switch. Remove the switch from the holder.
