Replacing the S and W mode selectors: Installation

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

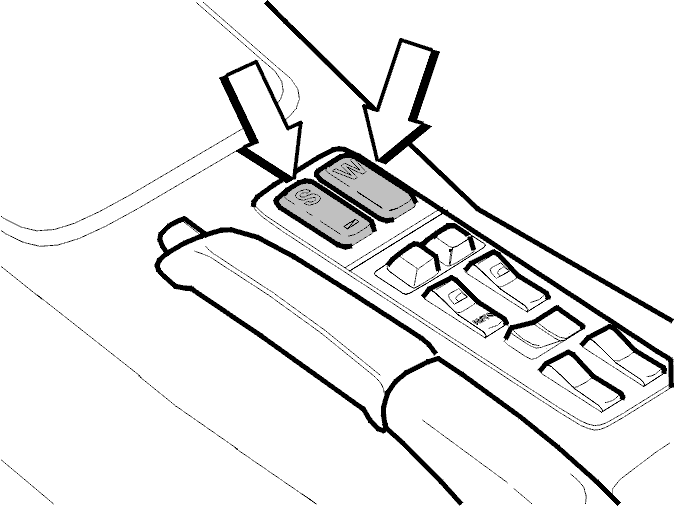

Fig 1: Identifying Mode Selector (S Or W)
GLL112626Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the mode selector.

Press the mode selector into place in the panel.

Install the panel in the center console.
