Replacing gear selector/boot/indicator panel: Preparations

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

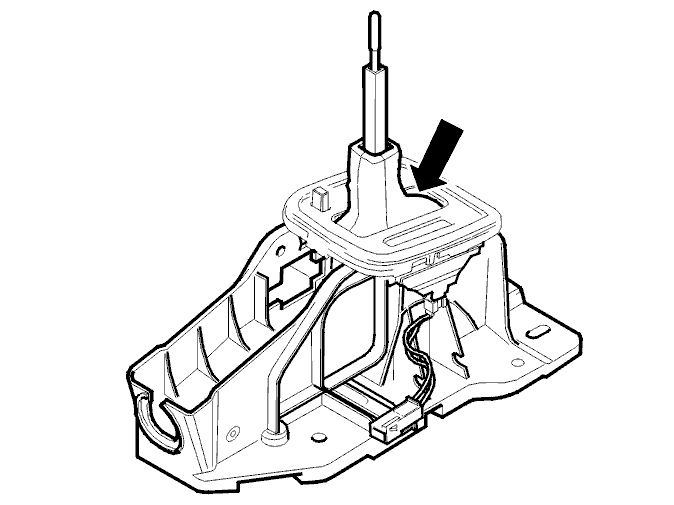

Fig 1: Identifying Gear Selector/Boot/Indicator Panel
GLL112629Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove gear selector knob according to Replacing gear selector knob .

Remove gear selector assembly according to Replacing gear selector assembly .

Remove panel and boot.
