Installing gear selector assembly and transmission cable
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Install:
- Gear selector assembly (four screws). At the same time locate the cable in the gear selector assembly.
Tightening torque: 25 Nm .

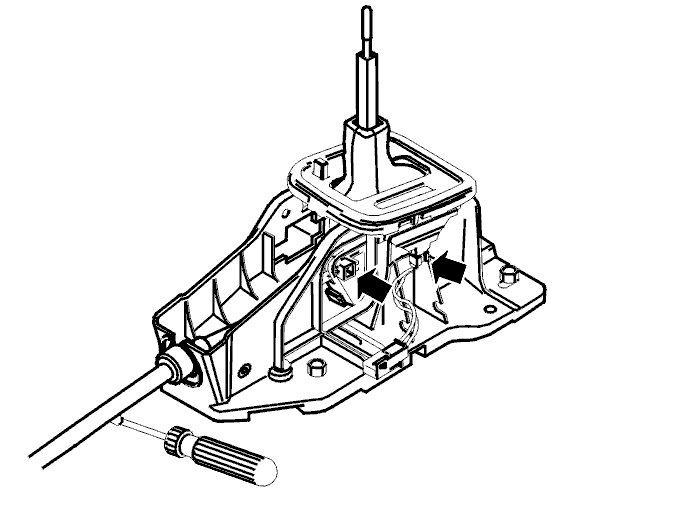

CAUTION: Take care not to damage the cable or sleeve by bending it excessively. - Cable harness clips (from behind). Connect connectors.
- Cable sleeve in gear selector assembly and lock sleeve with the clip.
- Cable on gear selector with pin.
CAUTION:
Take care not to damage the cable or sleeve by bending it excessively.
