Removing the shift cable

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing Shift Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

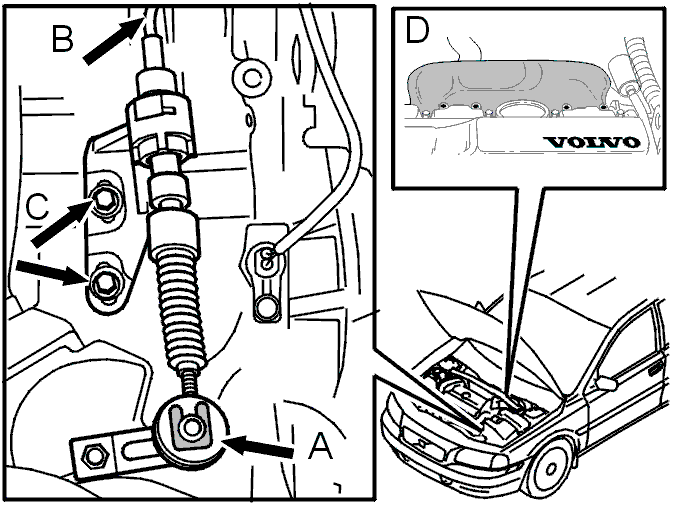

Remove:

the lock clip from the lever (A)
the cable from the clip on the connector bracket (B)
the cable bracket and cable from the lever (C)
the heat deflector plate on the firewall (3 nuts) (D).

Fig 1: Removing Shift Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

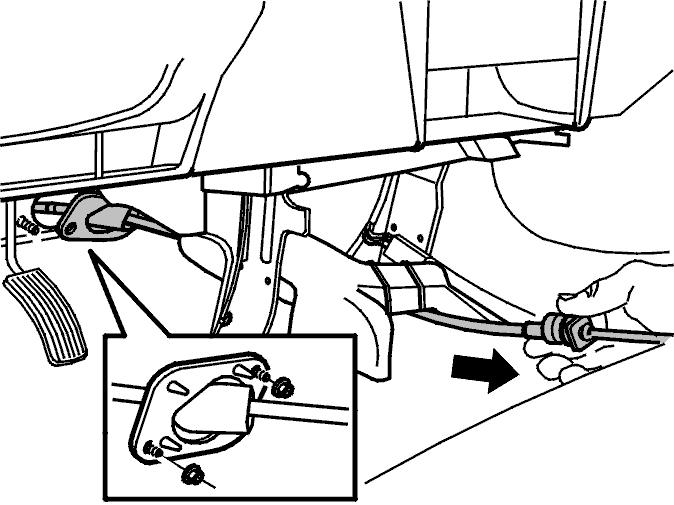

Detach the frame of the rubber grommet in the firewall (2 nuts).
Remove the cable by pulling it inwards into the passenger compartment.

NOTE: An additional mechanic is required to guide the cable and bracket through the engine compartment.
