Installing the lifting device

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

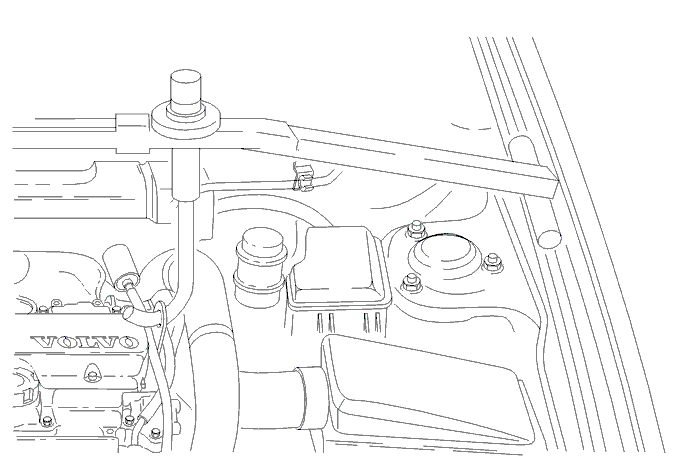

Fig 1: Installing Lifting Device

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

lifting brace 9995006
lifting hook 9995460 .

Position the lifting brace right above the engine lifting eye.

Tighten the lifting hook slightly.
