Installing the transmission

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

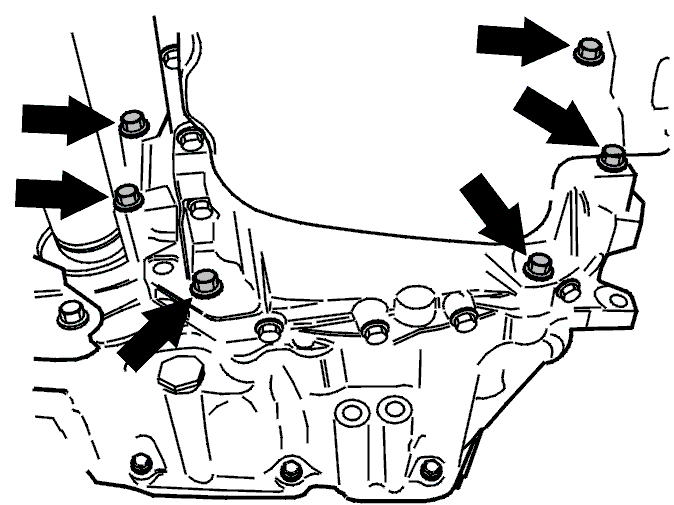

Fig 1: Removing/Installing Screws, Engine/Transmission

Courtesy of VOLVO CARS OF NORTH AMERICA.

Adjust for height and angle using the mobile jack and the transmission fixture.

Align the transmission against the engine.

CAUTION: Be careful not to damage the carrier plate collar for the flywheel sensor.

Fit the 6 screws. Tighten alternatingly finger-tight. Then tighten alternatingly.

Torque: 50 Nm .

CAUTION: When tightening the screws, check carefully that the guide bushings locate correctly in their guide holes. Check that the torque converter cover is in contact with the engine before tightening.
